Product brand: Taiwan AEROMAX
Tool Name:Pneumatic shear
Shear capacity: Soft resin 5mm
Producing area: made in Taiwan
Features of pneumatic scissors
1. compact and lightweight, suitable for automatic press mounting.
2. because the height of the main body is low, the horizontal type can make use of the space effectively, so that it can be pressed into the chuck conveniently.
3. use a solenoid valve to control the speed of shear
4. for shearing of resin formed products
|
Model |
GT-NY25 |
| Shear capacity | Soft resin 5mm |
| Hose size | Inner diameter 4mm |
| Air pressure | 0.5-0.6MPa |
| Sliding range | 0-5mm |
|
Average gas consumption |
184cm³/stroke |
| weight | 1.276Lbs(0.58Kg) |

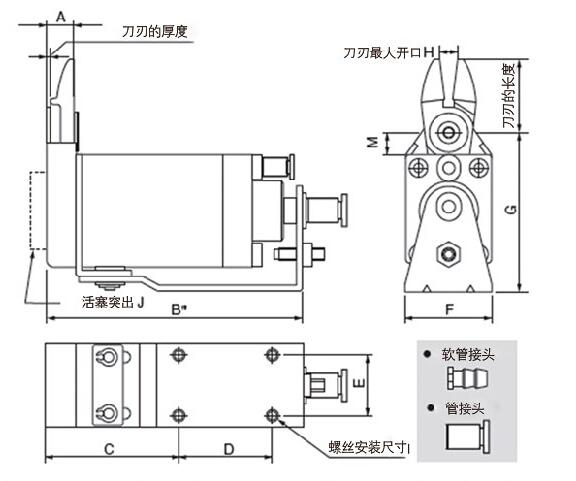

| 型号 | A | C | E | G | I | K |
| 12.5 | 54.5 | 30 | 69 | M5 | ||
| GT-NY25 | B | D | F | H | J | 31 |
| 108.5 | 40 | 42 | 9 | 2 |
